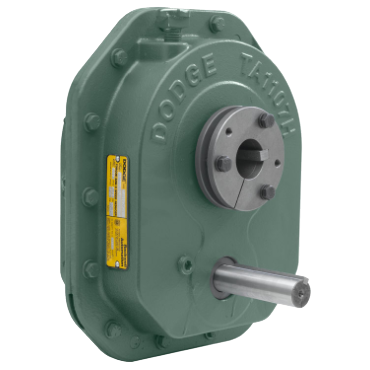

Dodge TA7315H15TPR Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

The Dodge TA7315H15TPR is a Torque Arm II taper bushed shaft mount reducer designed for efficient power transmission. This reducer is modular for shaft mount and screw conveyor applications.

• AGMA Size 315
• 15:1 ratio for optimal performance
• Requires tapered bushing for installation

Product Highlights

This product features exclusive twin tapered bushings that provide a sturdy concentric grip of the driven shaft on both sides of the reducers, enhancing performance and durability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: TA7315H15TPR
• Type: Torque Arm II Reducer
• Availability: In Stock

Technical Specifications

• Output Bushing Bore Range [Max]: 4 7/16 in
• Output Bushing Bore Range [Min]: 2 7/16 in
• Output (Shaft or Bore) Size: 2 7/16 in
• Box Height: 30.93 in
• Box Width: 8.18 in
• Box Length: 23.52 in
• Weight: 493.0 LB
• Drive Type: Torque Arm
• AGMA Unit Size: 315
• Installed Options: None
• Use With: 7315
• EAN or UPC: 782475630226
