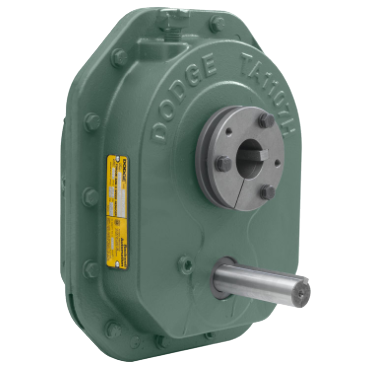

Dodge TA6307H40TATPR Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

The Dodge TA6307H40TATPR, known as the Torque Arm II Taper Bushed Shaft Mount Reducer, is designed for shaft mount and screw conveyor applications. It features a modular design that simplifies installation and maintenance. This reducer has exclusive twin tapered bushings that ensure a strong grip, providing stability and reliability. The TA6307H40TATPR is engineered to meet AGMA specifications, making it suitable for various applications.

• Modular design for easy integration
• Compatible with ABB Smart Sensor for enhanced monitoring
• 36 month/18 month warranty coverage

Product Highlights

This reducer is built for efficiency and longevity, suitable for heavy-duty applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100949157

Technical Specifications

• AGMA Unit Size: 307
• Output Bushing Bore Range [Min]: 2 3/16 in
• Output Bushing Bore Range [Max]: 3 7/16 in
• Use With: 6307
• Drive Type: Torque Arm
• Box Length: 20.55 in
• Box Height: 25.23 in
• Box Width: 7.62 in
• Weight: 350.0 LB
• EAN or UPC: 782475628872
