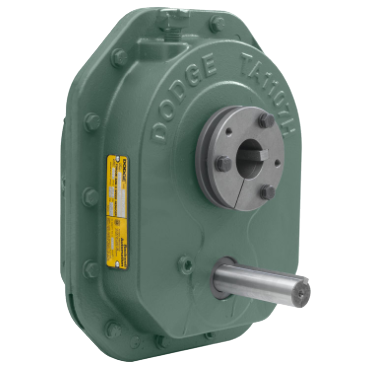

Dodge TA5215H15TPR Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

The Dodge TA5215H15TPR is a Torque Arm II taper bushed shaft mount reducer designed for various applications. It features a modular design suitable for shaft mount and screw conveyor applications. This reducer provides efficient output and performance with twin tapered bushings that enhance the grip of the driven shaft.

• AGMA Size 215
• 15:1 Ratio
• Requires tapered bushing

Product Highlights

The reducer ensures compatibility with extreme pressure lubricants and comes with heavy-duty sealing as standard.

Product Information

Standard Information

• Brand: Dodge
• MPN: TA5215H15TPR

Technical Specifications

• Ratio: 15:1
• Output Bushing Bore Range [Max]: 3 3/16 inches
• Mfr. Unit Size: 5215
• AGMA Unit Size: 215
• Use With: 5215
• Output Bushing Bore Range [Min]: 1 15/16 inches
• Box Length: 19.35 inches
• Box Width: 7.2 inches
• Drive Type: Torque Arm
• Box Height: 23.81 inches
• Output (Shaft or Bore) Size: 1 5/8 inches
• Installed Options: None
• Weight: 300.0 lbs
• EAN or UPC: 782475613113
