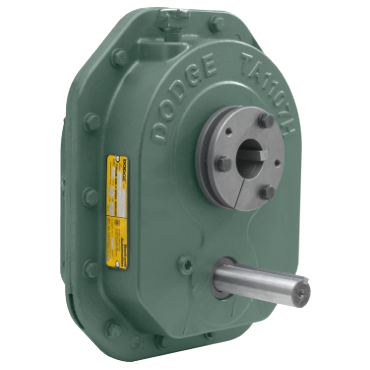

Dodge TA4207H40TATPR Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

The Dodge TA4207H40TATPR is a Torque Arm II taper bushed shaft mount reducer ideal for a range of applications. This reducer features a modular design suitable for shaft mount and screw conveyor use.

• AGMA Size 207
• 40:1 Ratio
• Requires tapered bushing for mounting

Product Highlights

This reducer is engineered with exclusive twin tapered bushings for a sturdy grip on the driven shaft. The modular gearbox design helps minimize inventory costs while maintaining performance.

Product Information

Standard Information

• Brand: Dodge
• MPN: TA4207H40TATPR

Technical Specifications

• Drive Type: Torque Arm
• Box Length: 16.61 inches
• Box Width: 6.31 inches
• Box Height: 20.14 inches
• Weight: 206.0 LB
• Output (Shaft or Bore) Size: 1 7/16 inches
• AGMA Unit Size: 207
• Output Bushing Bore Range [Min]: 1 11/16 inches
• Output Bushing Bore Range [Max]: 2 11/16 inches
• Mfr. Unit Size: 4207
• Installed Options: None
• EAN or UPC: 782475611515
