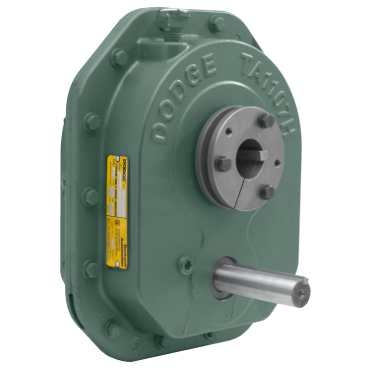

Dodge TA4207H05TATPR Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

The Dodge TA4207H05TATPR is a Torque Arm II taper bushed shaft mount reducer designed for reliable performance in various applications. This reducer features a modular shaft mount and a compact design, making it suitable for space-constrained environments. The exclusive twin tapered bushings ensure a stable grip of the driven shaft on both sides of the reducer, optimizing torque transfer and efficiency.

• AGMA Size 207
• 5:1 Ratio
• Modular design for easy installation

Product Highlights

This product is designed with larger gear teeth and extended gear centers that enhance input horsepower and output torque capabilities. It offers increased torque ratings comparable to larger sizes, making it versatile for various industrial applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100949063

Technical Specifications

• Output (Shaft or Bore) Size: 1 7/16 in
• Box Length: 16.61 in
• Box Width: 6.31 in
• Box Height: 20.14 in
• Output Bushing Bore Range [Min]: 1.6875 in
• Output Bushing Bore Range [Max]: 2.6875 in
• Weight: 202.0 LB
• Drive Type: Torque Arm
• AGMA Unit Size: 207
• Mfr. Unit Size: 4207
