Dodge TA3203MTR MOUNT | Torque Arm II Motor Mount

Product Description

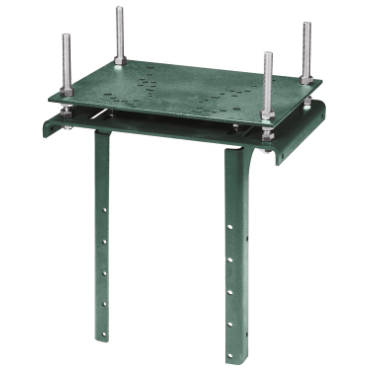

The Dodge TA3203MTRMOUNT is designed for the Torque Arm II unit. This motor mount provides a stable platform for mounting motors in various applications. It is essential for effective motor operation and belt tensioning.

• Secures the motor and acts as the main belt tensioning device.
• Supported by two angle iron brackets for stability.
• Holes align with cast slots of the gear case for easy installation.

Product Highlights

This motor mount can be adjusted vertically and mounted on the side of reducers. It is designed for screw conveyor applications and accommodates NEMA and IEC frame motors.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100818480
• Availability: Ready To Ship (Typically Ships within 24 hours)

Technical Specifications

• Base to O/P Shaft Center Height [Min]: 8.13 inches
• Base to O/P Shaft Center Height [Max]: 17.44 inches
• Weight: 89.24 pounds
• Use With: 3203
• Component: Base & Support Hardware
• EAN or UPC: 782475541690
