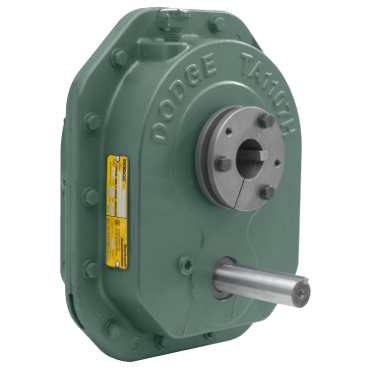

Dodge TA3203H32TA TPR | Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

The Dodge TA3203H32TATPR is a Torque Arm II taper bushed shaft mount reducer. It is designed for efficient power transmission in industrial applications. This unit has a robust design and is modular to fit into various configurations of shaft mount systems.

• AGMA size is 203 with a 32:1 gear ratio.
• Heavy-duty sealing is standard across all sizes.
• Compatible with ABB Smart Sensor for monitoring.

Product Highlights

This reducer is suitable for shaft mount and screw conveyor setups. It incorporates twin tapered bushings that ensure a firm grip on the driven shaft, while a modular gearbox aids in inventory management.

Product Information

Standard Information

• Brand: Dodge
• Part Number: TA3203H32TATPR

Technical Specifications

• Drive Type: Torque Arm
• Use With: 3203
• Output Bushing Bore Range [Max]: 2 3/8 in
• Output Bushing Bore Range [Min]: 1 7/16 in
• Output (Shaft or Bore) Size: 1 1/8 in
• Box Length: 13.96 in
• Box Height: 16.61 in
• Box Width: 6.18 in
• AGMA Unit Size: 203
• Mfr. Unit Size: 3203
• Weight: 141.0 lb
• EAN or UPC: 782475542536
