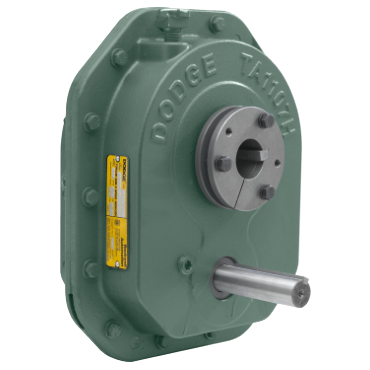

Dodge TA2115H33TA TPR | Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

Dodge TA2115H33TATPR is a Torque Arm II taper bushed shaft mount reducer. This product is designed for various industrial applications. Its modular design suits shaft mount and screw conveyor systems.

• Modular for shaft mount and screw conveyor applications
• Exclusive twin tapered bushings enhance grip on the driven shaft
• Compatible with extreme pressure lubricant

Product Highlights

This reducer features a robust construction and is built for heavy-duty performance.

Product Information

Standard Information

• Brand: Dodge
• MPN: TA2115H33TATPR

Technical Specifications

• Ratio: 33:1
• Box Length: 12.61 inches
• Output Bushing Bore Range [Max]: 2 3/16 inches
• AGMA Unit Size: 115
• Output (Shaft or Bore) Size: 1 inch
• Drive Type: Torque Arm
• Box Height: 15.08 inches
• Mfr. Unit Size: 2115
• Installed Options: None
• Output Bushing Bore Range [Min]: 1 5/16 inches
• Use With: 2115
• Box Width: 5.3 inches
• Weight: 107.0 LB
• EAN or UPC: 782475542109
