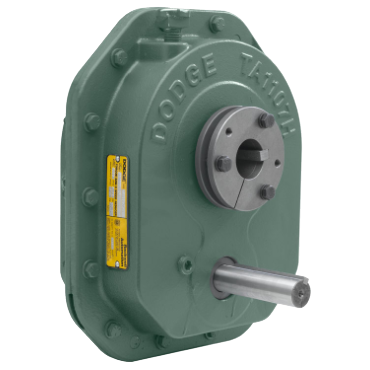

Dodge TA2115H25TA TPR | Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

The Dodge TA2115H25TATPR is a Torque Arm II taper bushed shaft mount reducer designed for heavy-duty applications. This modular reducer is ideal for shaft mount and screw conveyor applications. It features exclusive twin tapered bushings that provide a strong grip on the driven shaft. The reducer is engineered to reduce inventory costs by offering a modular gearbox and accessories.

• Modular design for versatile use
• Compatible with extreme pressure lubricants
• 36-month warranty for reliability

Product Highlights

This product meets AGMA specifications and is ATEX certified, making it suitable for industrial use. Its heavy-duty sealing is standard across all sizes, providing durability in demanding conditions.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100818448

Technical Specifications

• Drive Type: Torque Arm
• Output (Shaft or Bore) Size: 1 1/8 in
• Output Bushing Bore Range [Max]: 2 3/16 in
• Mfr. Unit Size: 2115
• AGMA Unit Size: 115
• Box Height: 15.08 in
• Box Length: 12.61 in
• Box Width: 5.3 in
• Weight: 107.0 LB
• EAN or UPC: 782475542093
