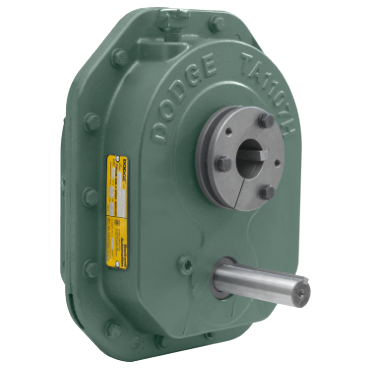

Dodge TA0107L25TPR Torque Arm II Taper Bushed Shaft Mount Reducer

Product Description

The Dodge TA0107L25TPR is a Torque Arm II taper bushed shaft mount reducer. This reducer features a modular design suitable for both shaft mount and screw conveyor applications. The exclusive twin tapered bushings ensure a secure grip of the driven shaft on either side of the reducer.

• Modular for shaft mount and screw conveyor applications
• Exclusive twin tapered bushings provide sturdy concentric grip
• Heavy-duty sealing is standard on all sizes

Product Highlights

The TA0107L25TPR reducer is built with durability and efficiency in mind, making it a reliable choice for industrial applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: TA0107L25TPR

Technical Specifications

• AGMA Unit Size: 107
• Box Height: 11.35 inches
• Box Length: 9.47 inches
• Box Width: 4.75 inches
• Output (Shaft or Bore) Size: 1 inch
• Output Bushing Bore Range [Min]: 1 inch
• Output Bushing Bore Range [Max]: 1.4375 inches
• Weight: 41.0 lbs
• Drive Type: Torque Arm
