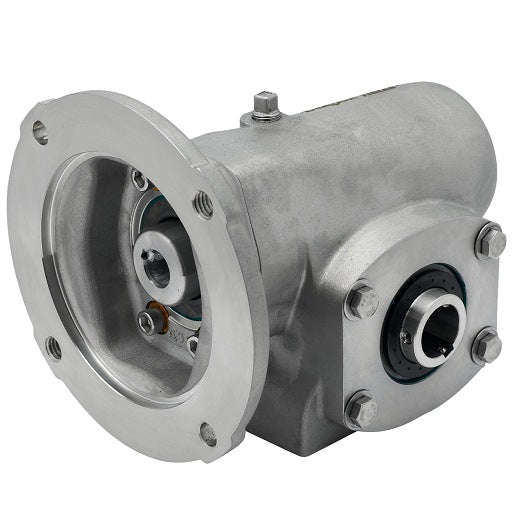

Dodge SS26Q30H56SD104 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge SS26Q30H56SD104 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for mechanical power transmission. This gearbox features a center distance of two point six three inches, a frame size of 56C, and is constructed with stainless steel housing. It is engineered for durability and efficiency in various applications.

• Center distance of 2.63 inches
• Frame size of 56C
• Stainless steel housing for strength

Product Highlights

The SS26Q30H56SD104 is suitable for demanding environments, maintaining performance under significant loads.

Product Information

Standard Information

• Brand: Dodge
• Part Number: SS26Q30H56SD104

Technical Specifications

• Center Distance: 2.63 in
• Overhung Load: 1610 lbf
• Input Style: Quill
• Housing Material: Stainless Steel
• Seal Type: Two-Piece Harsh Duty
• Horsepower Output: 1.58 hp
• Frame Size: 56C
• Output Style: Hollow
• Lubrication: PAG, Standard Temperature
• Component Type: Gearbox
• Bore Length: 6.62 in
• Nominal Ratio: 30
• Weight: 52.0 LB
• EAN or UPC: 782477139093
