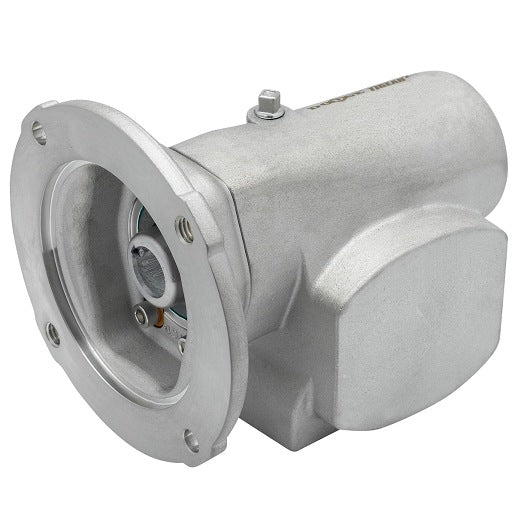

Dodge SS20Q50L56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge SS20Q50L56 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for high efficiency in various mechanical applications. This gearbox features a left output and a compact design suitable for tight spaces.

• Center distance of two inches
• 56C frame size for compatibility
• Stainless steel housing for durability

Product Highlights

Ideal for power transmission systems requiring compact gearing solutions, the Dodge SS20Q50L56 offers enhanced performance.

Product Information

Standard Information

• Brand: Dodge
• MPN: SS20Q50L56

Technical Specifications

• Output Shaft Diameter: 1 inch
• Housing Material: Stainless Steel
• Horsepower Output: 0.44 hp
• Input Style: Quill
• Nominal Ratio: 50
• Seal Type: Two-Piece Harsh Duty
• Component Type: Gearbox
• Frame Size: 56C
• Lubrication: PAG, Standard Temperature
• Center Distance: 2 inches
• Output Style: Left
• Overhung Load: 1560 lbf
• Weight: 38.0 lb
• EAN or UPC: 782477045684
