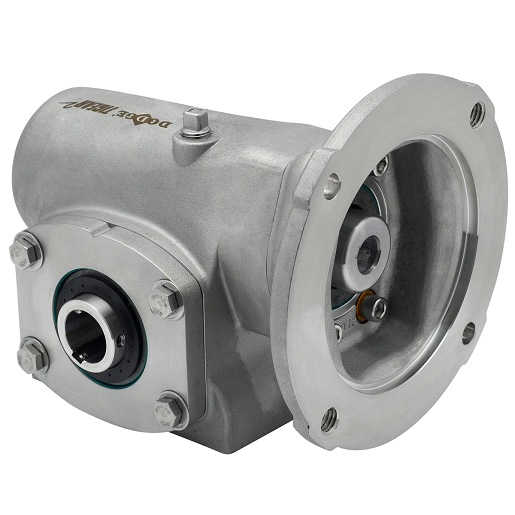

Dodge SS20Q15H56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge SS20Q15H56 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for reliable performance in various applications. This gearbox features a stainless steel housing for durability and corrosion resistance. It has a center distance of two inches and a nominal ratio of fifteen, making it suitable for transferring high torque while maintaining efficiency.

• Stainless steel housing for strength and durability
• Designed with a hollow output for easy integration
• Includes a quill input style for flexibility in installation

Product Highlights

The Dodge SS20Q15H56 offers strong performance with a horsepower output of 1.46. Its compact design makes it ideal for space-restricted areas, and its lubrication system is optimized for standard temperatures.

Product Information

Standard Information

• Brand: Dodge
• Part Number: SS20Q15H56

Technical Specifications

• Frame Size: 56C
• Overhung Load: 1560 lbf
• Component Type: Gearbox
• Nominal Ratio: 15
• Output Style: Hollow
• Center Distance: 2 inches
• Input Style: Quill
• Bore Length: 5.7 inches
• Horsepower Output: 1.46 hp
• Lubrication: PAG, Standard Temperature
• Housing Material: Stainless Steel
• Seal Type: Two-Piece Harsh Duty
• Weight: 38.0 lb
• EAN or UPC: 782477045233
