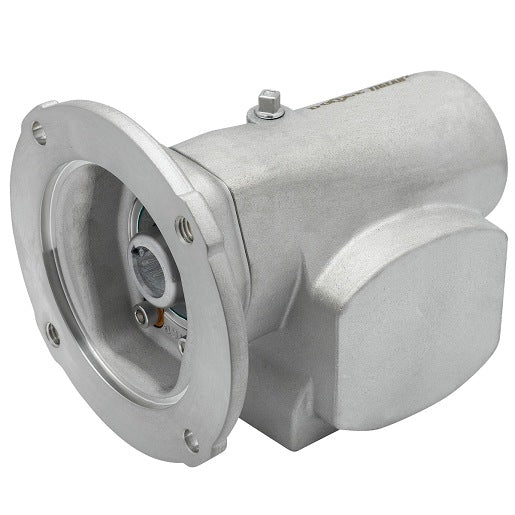

Dodge SS17Q20L56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge SS17Q20L56 is a TIGEAR-2 right angle worm gear reducer designed for mechanical power transmission. This gearbox is suitable for applications requiring reliable and efficient speed reduction. It features a stainless steel housing and is built to withstand harsh conditions.

• Stainless Steel Housing for Durability
• Compact Design with 1.75-inch Center Distance
• 20:1 Nominal Gear Ratio

Product Highlights

This reducer is ideal for applications in food processing, packaging, and other environments where hygiene and robust performance are essential.

Product Information

Standard Information

• Brand: Dodge
• MPN: SS17Q20L56

Technical Specifications

• Frame Size: 56C
• Output Shaft Diameter: 0.875 in
• Center Distance: 1.75 in
• Overhung Load: 1190 lbf
• Seal Type: Two-Piece Harsh Duty
• Nominal Ratio: 20
• Lubrication: PAG, Standard Temperature
• Housing Material: Stainless Steel
• Horsepower Output: 0.84 hp
• Output Style: Left
• Component Type: Gearbox
• Input Style: Quill
• Weight: 28.0 lb
• EAN or UPC: 782477044038
