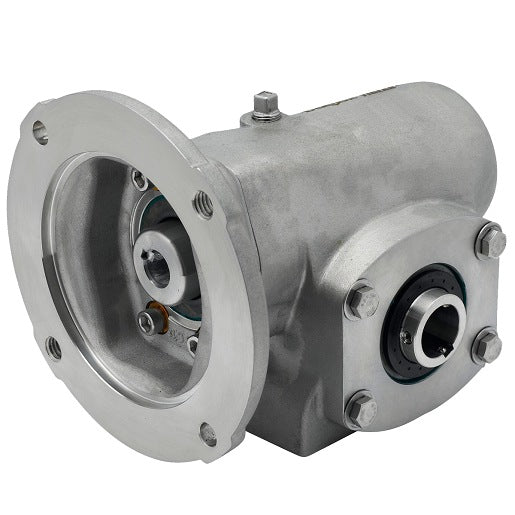

Dodge SS17Q20H56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge SS17Q20H56 is a TIGEAR-2 right angle worm gear reducer designed for effective power transmission. This product is ideal for applications requiring reliable torque and speed reduction. It features a hollow output shaft, which allows for flexible mounting options. This reducer is suitable for mechanical power transmission tasks in various industrial settings.

• 1.75 inch center distance
• 56C frame size
• Stainless steel housing material

Product Highlights

Designed for durability and efficiency in power transmission.

Product Information

Standard Information

• Brand: Dodge
• MPN: SS17Q20H56

Technical Specifications

• Center Distance: 1.75 inches
• Bore Length: 5.41 inches
• Output Style: Hollow
• Seal Type: Two-Piece Harsh Duty
• Overhung Load: 1190 lbf
• Input Style: Quill
• Horsepower Output: 0.84 hp
• Nominal Ratio: 20
• Housing Material: Stainless Steel
• Component Type: Gearbox
• Frame Size: 56C
• Lubrication: PAG, Standard Temperature
• Weight: 28.0 lb
• EAN or UPC: 782477044014
