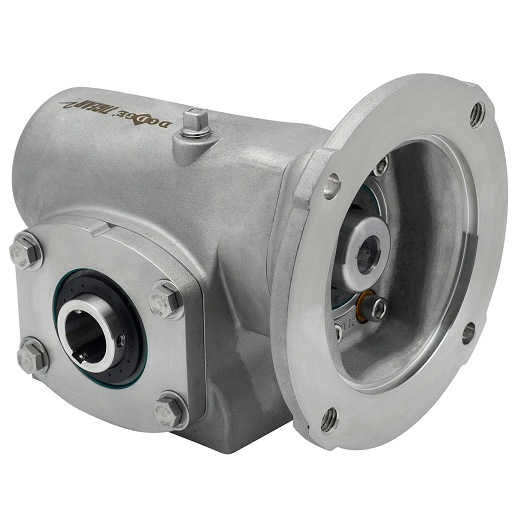

Dodge SS17Q15H56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge SS17Q15H56 is a TIGEAR-2 right angle worm gear reducer designed for efficiency and durability. This gearbox features a stainless steel housing which offers superior resistance to corrosion and wear. It has a center distance of one point seventy-five inches and is compatible with hollow output styles, making it a flexible choice for various applications.

• Horsepower output: 1.08 hp
• Nominal ratio of 15
• Two-piece harsh duty seal type

Product Highlights

This product is ideal for mechanical power transmission applications requiring a robust speed reducer. The SS17Q15H56 ensures reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• MPN: SS17Q15H56

Technical Specifications

• Horsepower Output: 1.08 hp
• Bore Length: 5.41 in
• Input Style: Quill
• Component Type: Gearbox
• Housing Material: Stainless Steel
• Output Style: Hollow
• Center Distance: 1.75 in
• Nominal Ratio: 15
• Seal Type: Two-Piece Harsh Duty
• Frame Size: 56C
• Overhung Load: 1190 lbf
• Lubrication: PAG, Standard Temperature
• Weight: 28.0 lb
• EAN or UPC: 782477043932
