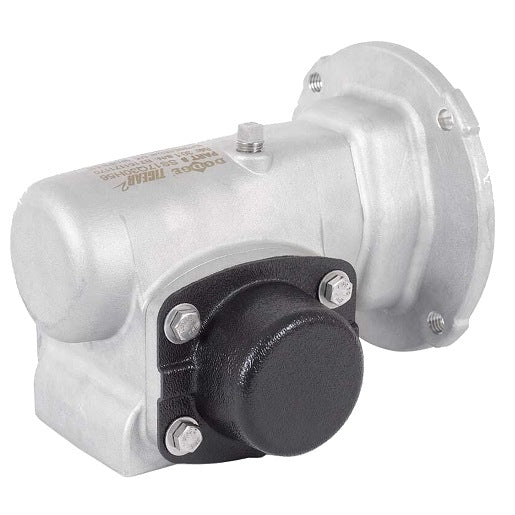

Dodge SS17Q05R56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge SS17Q05R56 is a TIGEAR-2 right angle worm gear reducer designed for effective power transmission. This product is suitable for various industrial applications where reliability is crucial. It features a stainless steel housing, providing durability and resistance to harsh environments.

• 1.75 inches center distance
• 56C frame size
• Right output style

Product Highlights

The SS17Q05R56 is built for tough applications and is ideal for use in mechanical power transmission systems.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 111171314

Technical Specifications

• Lubrication: PAG, Standard Temperature
• Output Style: Right
• Frame Size: 56C
• Nominal Ratio: 5
• Center Distance: 1.75 inches
• Overhung Load: 1050 lbf
• Input Style: Quill
• Housing Material: Stainless Steel
• Horsepower Output: 2.39 hp
• Seal Type: Two-Piece Harsh Duty
• Output Shaft Diameter: 0.875 inches
• Component Type: Gearbox
• Weight: 28.0 LB
• EAN or UPC: 782477067648
