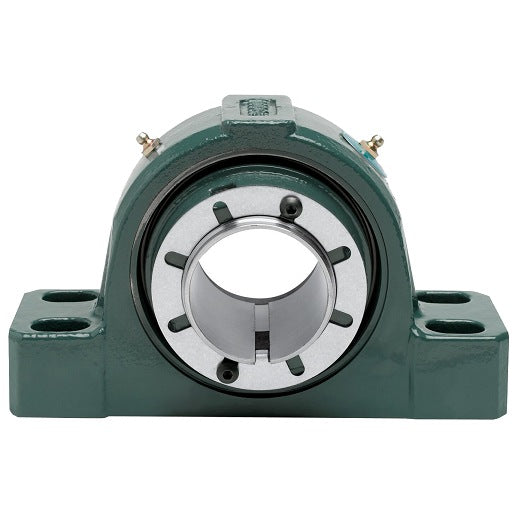

Dodge SP4B-IP-315RE Pillow Block Roller Bearing Unit - 3-15/16 in Bore Dia. Replacement MPN

Product Description

The Dodge SP4B-IP-315RE is a Pillow Block Roller Bearing Unit designed for heavy loads. This unit features an expansion bearing that allows for movement during operation, making it suitable for various applications. The housing is made from steel for strength and durability.

• Dynamic load capacity of 83,000 lbf
• Grease lubrication for effective performance
• Mounted bearing component for easy installation

Product Highlights

This bearing unit is ideal for industrial applications requiring reliable performance and durability.

Product Information

Standard Information

• Brand: Dodge
• MPN: SP4B-IP-315RE

Technical Specifications

• Bearing Component: Mounted Bearing
• Dynamic Load Capacity: 83000 lbf
• Greasable: Yes
• Bearing Type: Spherical Roller
• Shaft Attachment: Push-Pull Adapter
• Lubrication: Grease
• Housing Material: Steel
• Bolt Diameter: 0.75 in
• Bore Length: 4.7 in
• Sensor Ready: Yes
• Bolt Width: 2.25 in
• Take-Up Frame Size: HD-350
• Housing Dimensional Standard: S-2000
• Base to Center Height: 4.25 in
• Expansion Capability: Float
• Bolt to Bolt [Min]: 10.88 in
• Speed [Max]: 1530 rpm
• Grease Name: MobilGrease XHP222
• Insert Material: Steel
• Shaft Dia.: 3.938 in
• Housing Construction: Solid
• Static Load Capacity: 104000 lbf
• Bolt to Bolt [Max]: 13.38 in
• Weight: 53.9 lb
• EAN or UPC: 782476366292
