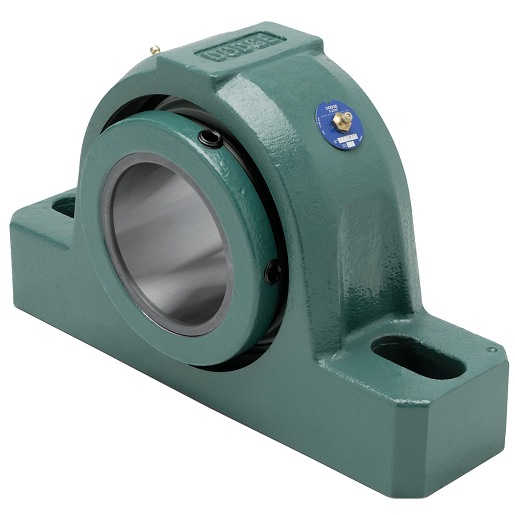

Dodge SP2B-S2-111RE Steel Housing Spherical Roller Bearing 2 Bolts Pillow Block

Product Description

The Dodge SP2B-S2-111RE is a steel housing spherical roller bearing designed for mounted applications. It features a two-bolt pillow block that allows for easy installation and secure mounting. This bearing supports shaft diameters of one point six eight eight inches and can handle various loads efficiently.

• Bearing type: Spherical Roller Bearing
• Static load capacity: 22000 lbf
• Max speed: 2460 rpm

Product Highlights

The Dodge SP2B-S2-111RE is engineered for robust performance in demanding environments. Its solid construction and grease lubrication ensure durability and low maintenance.

Product Information

Standard Information

• Brand: Dodge
• MPN: SP2B-S2-111RE

Technical Specifications

• Bearing Type: Spherical Roller Bearing
• Bolt Diameter: 0.5 in
• Static Load Capacity: 22000 lbf
• Speed [Max]: 2460 rpm
• Bearing Component: Mounted Bearing
• Insert Material: Steel
• Housing Material: Steel
• Expansion Capability: Float
• Min Bolt to Bolt Distance: 5.25 in
• Lubrication: Grease
• Sensor Ready: Yes
• Housing Construction: Solid
• Base to Center Height: 2.13 in
• Shaft Diameter: 1.688 in
• Greasable: Yes
• Shaft Attachment: Setscrew
• Grease Name: MobilGrease XHP222
• Housing Dimensional Standard: S-2000
• Dynamic Load Capacity: 20800 lbf
• Number of Bolts: 2
• Bore Length: 2.67 in
• Max Bolt to Bolt Distance: 5.75 in
• Weight: 10.04 lb
• EAN or UPC: 782476366513
