Dodge SK45MM14X3.8MM | QD Bushing

Product Description

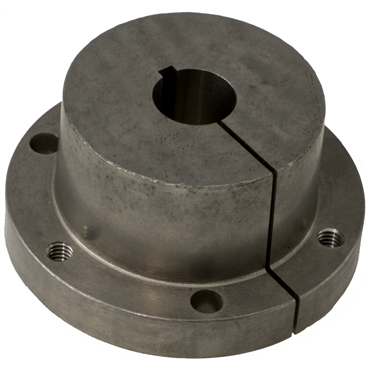

The Dodge SK45MM14X3.8MM is a QD bushing designed for various industrial applications. This bushing features a bore size of forty-five millimeters, making it suitable for diverse machinery.

• High torque capacity of 7000 lb/in
• Constructed from ductile iron for durability
• Compatible with SK series products

Product Highlights

This product is reliable in demanding environments, providing robust performance in connecting drive components.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946005

Technical Specifications

• Material: Ductile Iron
• Bore Size: 1.771 inches - 45 mm
• Overall Length: 1.75 inches
• Flange Thickness: 9/16 inches
• Large Diameter: 2 13/16 inches
• Bolt Circle Diameter: 3 5/16 inches
• Cap Screws: 3
• Wrench Torque: 15 lbf
• Torque Capacity: 7000 lb/in
• Keyway Size: 14 mm x 4.5 mm
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 2.625 inches
• Length Through Bore: 1.75 inches
• Bushing Series: SK
• EAN or UPC: 782475885176
• Inch/Metric: Metric
