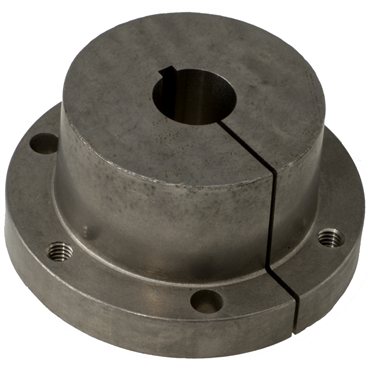

Dodge SK42MM12X3.3MM QD Bushing

Product Description

The Dodge SK42MM12X3.3MM is a QD Bushing designed for various mechanical applications. This bushing features a forty-two millimeter bore size suitable for a range of shafts and provides a secure fit. The QD design allows for easy installation and removal, making it efficient for maintenance tasks.

• Bore Size: 1.654 inches (42 mm)
• Material: Ductile Iron
• Torque Capacity: 7000 lb/in

Product Highlights

This product is ideal for use in conveyor systems, machinery components, and other mechanical applications where a reliable connection is required.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946013

Technical Specifications

• Keyway Size: 12 mm x 4 mm
• Cap Screws: 3
• Large Diameter: 2 13/16 inches
• Bushing Series: SK
• Inch/Metric: Metric
• Flange Thickness: 0.5625 inches
• Wrench Torque: 15 lbf
• E (Knuckle Width): 1.21875 inches
• Capscrew Size: 5/16-18 x 2
• Length Through Bore: 1.75 inches
• Overall Length: 1.75 inches
• Material: Ductile Iron
• Bore Range [Max]: 2.625 inches
• Bore Range [Min]: 0.5 inches
• Bolt Circle Diameter: 3 5/16 inches
• Weight: 2.7 lb
• EAN or UPC: 782475098415
