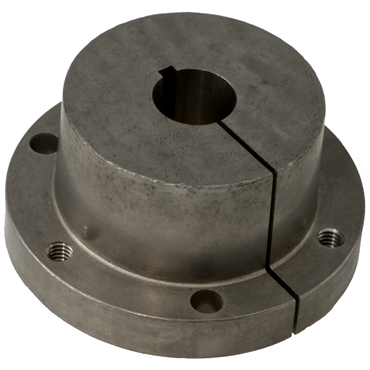

Dodge SK35MM10X3.3MM QD Bushing

Product Description

The Dodge SK35MM10X3.3MM QD Bushing is designed for connecting components in various machinery effectively. This bushing features a thirty-five millimeter bore size and is part of the SK series, known for reliable performance. It is suitable for various applications where torque transmission is essential.

• Compatible with a range of shafts and hubs.
• Constructed from ductile iron for durability.
• Torque capacity of seven thousand lb/in.

Product Highlights

This QD bushing provides a simple method for mounting and dismounting drive components.

Product Information

Standard Information

• Brand: Dodge
• Part Number: SK35MM10X3.3MM

Technical Specifications

• Wrench Torque: 15 lbf
• Bore Range [Max]: 2.625 in
• Material: Ductile Iron
• Length Through Bore: 1.75 in
• Overall Length: 1.75 in
• Bushing Series: SK
• Flange Thickness: 0.5625 in
• Bolt Circle Diameter: 3 5/16 in
• Bore Range [Min]: 0.5 in
• Keyway Size: 10 mm x 4 mm
• Inch/Metric: Metric
• Cap Screws: 3
• Bore Size: 1.378 in - 35 mm
• Torque Capacity: 7000 lb/in
• Capscrew Size: 5/16-18 x 2
• Large Diameter: 2 13/16 in
• E (Knuckle Width): 1.21875 in
• Weight: 3.0 lb
• EAN or UPC: 782475098385
