Dodge SH32MM10X3.3MM | QD Bushing

Product Description

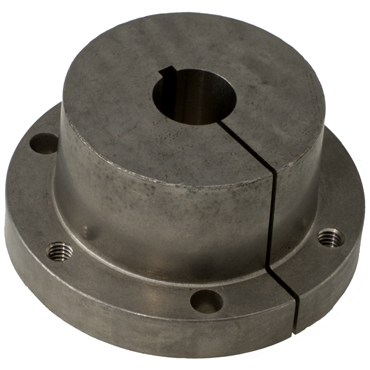

The Dodge SH32MM10X3.3MM is a quality QD bushing designed for smooth operation in various machinery. This bushing has a bore size of thirty-two millimeters and is part of the SH series. It is made from ductile iron, ensuring durability and reliability in performance.

• Bore size of thirty-two millimeters for compatibility with multiple applications.
• Designed to support torque capacity of up to three thousand five hundred lb/in.
• Constructed from high-quality ductile iron for enhanced strength.

Product Highlights

This QD bushing is suitable for various settings, including industrial machinery and equipment where reliable performance is essential.

Product Information

Standard Information

• Brand: Dodge
• Series: SH

Technical Specifications

• Wrench Torque: 9 lbf
• Inch/Metric: Metric
• Keyway Size: 10 mm x 4 mm
• Torque Capacity: 3500 lb/in
• Bore Range [Min]: 0.5 in
• Capscrew Size: 1/4-20 x 1 3/8
• Large Diameter: 1 7/8 in
• Length Through Bore: 1.21875 in
• Bore Size: 1.260 in - 32 mm
• Material: Ductile Iron
• Bore Range [Max]: 1.625 in
• Bolt Circle Dia.: 2 1/4 in
• E (Knuckle Width): 0.75 in
• Flange Thickness: 0.43 in
• Overall Length: 1.21875 in
• Cap Screws: 3
• Weight: 0.8 lb
• EAN or UPC: 782475884728
