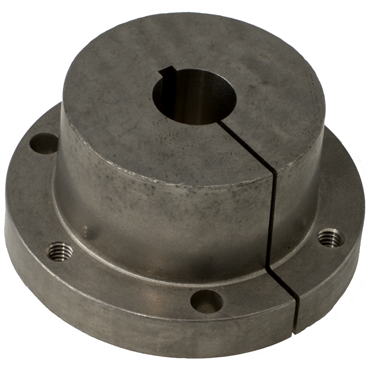

Dodge SH24MM8X3.3MM QD Bushing

Product Description

The Dodge SH24MM8X3.3MM is a quality QD (Quick Disconnect) Bushing designed for ease of use in various mechanical applications. This product features a bore size of twenty-four millimeters, which allows it to accommodate different shaft sizes effectively. Ideal for use in rotary applications, the design enhances the ability to connect and disconnect components with minimal effort.

• Compatible with standard shaft sizes
• Made from durable ductile iron
• Torque capacity of three thousand five hundred lb/in

Product Highlights

This bushing serves to secure mechanical components, reducing the risk of slippage while in operation. It is built to fit bushings from the SH series, ensuring broad compatibility and reliability in installations.

Product Information

Standard Information

• Brand: Dodge
• Product SKU: 100945979

Technical Specifications

• MPN: SH24MM8X3.3MM
• Material: Ductile Iron
• Weight: 1.0 LB
• Bore Size: 0.945 in - 24 mm
• Flange Thickness: 0.43 in
• Torque Capacity: 3500 lb/in
• Keyway Size: 8 mm x 3.5 mm
• Cap Screws: 3
• Length Through Bore: 1.21875 in
• Overall Length: 1.21875 in
• Large Diameter: 1 7/8 in
• Bolt Circle Diameter: 2 1/4 in
• Bore Range [Min]: 0.5 in
• Bore Range [Max]: 1.625 in
• Wrench Torque: 9 lbf
• E (Knuckle Width): 0.75 in
• Bushing Series: SH
• Inch/Metric: Metric
