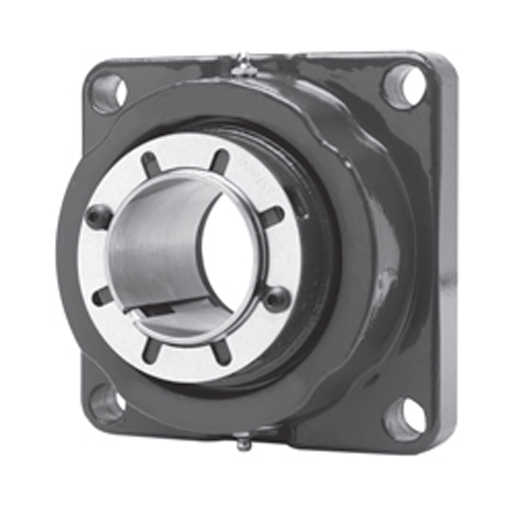

Dodge SF4S-IP-207R Greasable 4-Bolt Flange Unit

Product Description

The Dodge SF4S-IP-207R is a greasable 4-bolt flange unit designed for reliable performance in various applications. The unit features a shaft diameter of two point four three eight inches and is well-suited for heavy-duty usage. Built with a solid housing construction, this bearing unit provides strength and longevity in demanding environments.

• Dynamic load capacity: 39000 lbf
• Fixed expansion capability
• Compatible with MobilGrease XHP222

Product Highlights

This bearing unit is sensor-ready and features a maximum speed of 2400 rpm. The grease lubrication ensures efficient operation and maintenance.

Product Information

Standard Information

• Brand: Dodge
• MPN: SF4S-IP-207R

Technical Specifications

• Bore Length: 4.32 in
• Static Load Capacity: 47500 lbf
• Bolt Diameter: 0.625 in
• Bearing Type: Spherical Roller
• Insert Material: Steel
• Locking Device: Push-Pull Adapter
• Flange Type: 4-Bolt Flange
• Housing Dimensional Standard: S-2000
