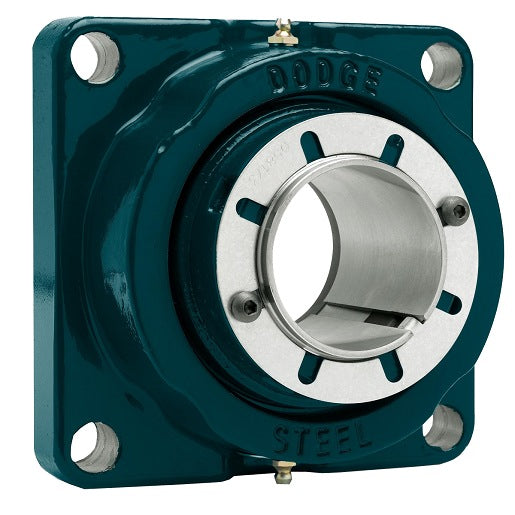

Dodge SEF4B-IP-315RE Imperial Safety Mount Steel Flange (Type E dimensioned)

Product Description

The Dodge SEF4B-IP-315RE is an Imperial Safety Mount Steel Flange designed for mounted bearings. This component features a locking device using a push-pull adapter, ensuring secure mounting for various applications. The steel construction provides durability and stability under various operating conditions.

• Designed for easy installation with a four-bolt flange.
• Compatible with spherical roller bearings for efficient load handling.
• Ideal for operations requiring robust support and expansion capability.

Product Highlights

The SEF4B-IP-315RE is engineered for use in heavy-duty applications, providing solid performance and maintenance benefits.

Product Information

Standard Information

• Brand: Dodge
• Part Number: SEF4B-IP-315RE

Technical Specifications

• Locking Device: Push-Pull Adapter
• Insert Material: Steel
• Bearing Type: Spherical Roller
• Expansion Capability: Float
• Dynamic Load Capacity: 83000 lbf
• Speed [Max]: 1530 rpm
• Shaft Diameter: 3.938 inches
• Greasable: Yes
• Flange Type: 4-Bolt Flange
• Bolt Diameter: 0.875 inches
• Housing Construction: Solid
• Grease Name: MobilGrease XHP222
• Sensor Ready: Yes
• Lubrication: Grease
• Static Load Capacity: 104000 lbf
• Housing Dimensional Standard: Type E
• Bore Length: 4.7 inches
• Bearing Component: Mounted Bearing
• Weight: 88.26 LB
• EAN or UPC: 782476368616
