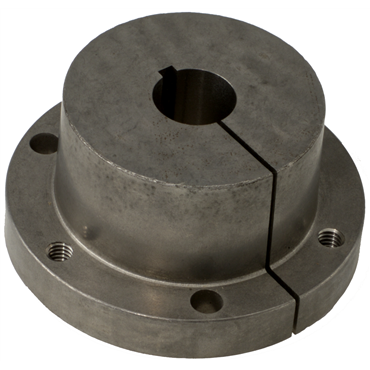

Dodge SD38MM10X3.3MM | QD Bushing | 38 mm Bore Size

Product Description

The Dodge SD38MM10X3.3MM is a QD bushing designed for applications requiring a bore size of thirty-eight millimeters. This bushing features a durable construction and is suitable for various machinery installations.

• Compatible with standard equipment requiring 38 mm bore.
• Manufactured from ductile iron for enhanced strength.
• Offers a maximum torque capacity of five thousand lb/in.

Product Highlights

This QD bushing is part of the SD series, ensuring reliable performance in demanding conditions. It is a preferred choice for machinery designed to operate with metric specifications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100945881

Technical Specifications

• Material: Ductile Iron
• Bore Size: 1.496 inches - 38 mm
• Overall Length: 1.8125 inches
• Weight: 1.45 LB
• Keyway Size: 10 mm x 4 mm
• Wrench Torque: 9 lbf
• Torque Capacity: 5000 lb/in
• Capscrew Size: 1/4-20 x 1 7/8
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 2 inches
• Flange Thickness: 7/16 inches
• Bolt Circle Dia.: 2 11/16 inches
• Inch/Metric: Metric
