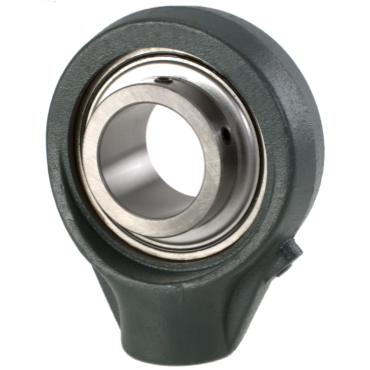

Dodge SCHBSC115 Screw Conveyor Hanger Bearing

Product Description

The Dodge SCHBSC115 is a screw conveyor hanger bearing designed for various industrial applications. This bearing features a 1.9375 inch shaft diameter and a cast iron housing for durability and stability. It is suitable for air handling, unit handling, food and beverage processing, and more.

• 1.9375 inch shaft diameter
• Cast iron construction
• Setscrew locking collar

Product Highlights

The SCHBSC115 includes a DualGuard sealing system for improved protection from contaminants. It also features a Maxlife cage design that maintains grease pockets around the balls, reducing the chance of washout and maintaining cooler operating temperatures.

Product Information

Standard Information

• Housing Length: 4 5/8 inches
• Thread Size: 1

Technical Specifications

• Collar O.D.: 2 7/16 inches
• Housing Width: 1.876 inches
• Length Through Bore: 1.75 inches
• Housing Material: Cast Iron
• Shaft Diameter: 1.9375 inches
• Locking Device: Setscrew Locking Collar
• Hanger Type: Screw Conveyor Type
• Weight: 4.51 LB
