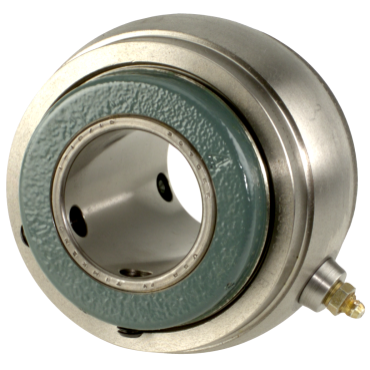

Dodge S1UDI307R S-1 Cartridge Unit Heavy-Duty 6 7/8 OD

The Dodge S1UDI307R is an S-1 Cartridge Unit designed for durability and efficiency. It can be mounted in a cylindrical bore for lineal shaft expansion or in a spherical groove to serve as an anchor bearing.

• Static self-aligning feature
• Heavy-duty construction
• Relubricatable for extended life

This unit is suitable for applications requiring reliable shaft support and alignment.

• Outside Diameter: 6.875 inches
• Misalignment Range: ±2° - 7°
• Locking Device: Double Setscrew Locking Collars
• Inch/Metric: Inch
• Duty: Heavy-Duty
• Maximum RPM: 1640 rpm
• Overall Width: 5 inches
• Seal Type: Labyrinth Seals
• Lubrication: Relubricatable
• Bearing Type: Tapered Roller Bearing
• Dynamic Load Rating: 15300 lbf
• Weight: 30.61 pounds
• Housing Material: Cast Iron
• Shaft Diameter: 3.4375 inches
• Length Through Bore: 5 inches
