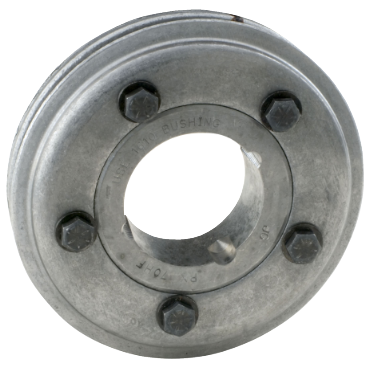

Dodge PX90FLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX90FLG is a Para-Flex Taper-Lock Flange designed for a range of industrial applications. This model features reversible flanges that work with sizes PX50 to PX120. It accommodates standard taper lock bushings for ease of installation and removal.

• Reversible flanges for added flexibility
• Standard taper lock bushings included
• Compact design for various applications

Product Highlights

This flange is ideal for use in tire coupling hub and flange assemblies, ensuring secure and effective operation in various setups.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100813073

Technical Specifications

• Bore Diameter [Max]: 2 11/16 in
• Torque Rating [Max]: 4,502.0 in lb
• Coupling Size: 90
• Bushing Type: Taper-Lock
• Bore Diameter [Min]: 1/2 in
• Outside Diameter: 9 1/4 in
• Input Bore Range: 1/2 to 2 1/2
• Max RPM: 2,800 rpm
• Style: Bushed from hub side
• Bushing Series: 2517
• Length Through Bore: 1 3/4 in
• Weight: 10.51 LB
• EAN or UPC: 782475009008
