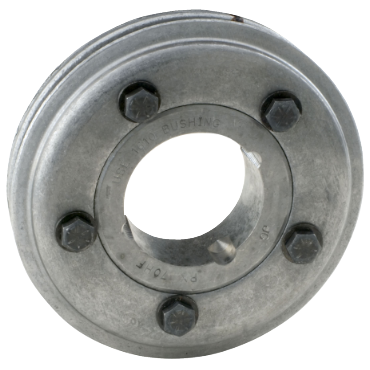

Dodge PX80FLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX80FLG is a Para-Flex Taper-Lock Flange designed for effective coupling in various applications. This flange uses a tapered bushing system for easy installation and provides reliable performance.

• Reversible flanges accommodate sizes PX50 to PX120
• Standard taper lock bushings simplify installation and removal
• Compact design enhances space utilization

Product Highlights

Ideal for connecting shafts and components within machinery.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100813068

Technical Specifications

• Bushing Series: 2012
• Bore Diameter [Min]: 1/2 in
• Coupling Size: 80
• Outside Diameter: 8.3800 in
• Input Bore Range: 1/2 to 2
• Style: Bushed From Hub Side
• Torque Rating: 3,105.0 in lb
• Torque Rating [Max]: 3,605.0 in lb
• Bore Diameter [Max]: 2 1/8 in
• Bushing Type: Taper-Lock
• Length Through Bore: 1 1/4 in
• RPM [Max]: 3,100 rpm
• Weight: 7.18 LB
• EAN or UPC: 782475008995
