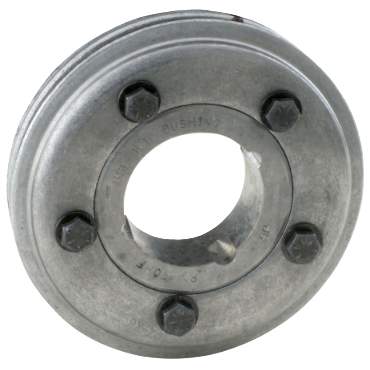

Dodge PX70FLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX70FLG is a Para-Flex Taper-Lock Flange designed for effective power transmission in applications requiring reliable coupling systems. This product features reversible flanges compatible with sizes PX50 to PX120, making it versatile for various setups.

• Easy to install with standard taper lock bushings
• Compact design suitable for tight spaces
• UL listed for compliance and safety

Product Highlights

This flange supports quick installation and removal, simplifying the maintenance process.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 102046607

Technical Specifications

• Torque Rating [Max]: 2200.0 in lb
• RPM [Max]: 3600 rpm
• Bore Diameter [Max]: 1 11/16 in
• Bushing Type: Taper-Lock
• Bore Diameter [Min]: 1/2 in
• Outside Diameter: 7.3800 in
• Coupling Size: 70
• Style: Bushed From Hub Side
• Input Bore Range: 1/2 to 1 5/8 in
• Length Through Bore: 1 in
• Bushing Series: 1610
• Weight: 5.03 lb
• EAN or UPC: 782475008988
