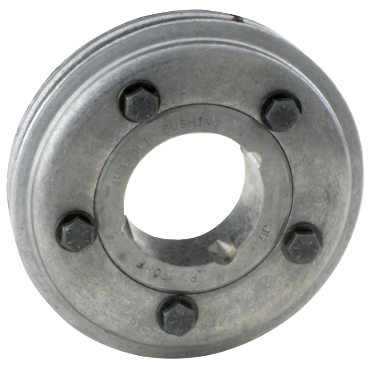

Dodge PX50FLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX50FLG is a Para-Flex Taper-Lock Flange designed for use with size fifty taper-lock bushings. This flange is built for durability and ease of installation within mechanical setups. Its reversible flanges accommodate a range of sizes, making it versatile in various applications. It typically ships within twenty-four hours.

• Compatible with Series 1108 tapered bushings
• Standard taper lock design for simple mounting
• Bushed from the hub side for efficient operation

Product Highlights

The PX50FLG is user-friendly and ideal for trade professionals working with tire coupling hubs or flange assemblies.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100813059

Technical Specifications

• Bushing Series: 1108
• Length Through Bore: 0.880 inches
• Torque Rating [Max]: 900.0 in lb
• Outside Diameter: 5 1/4 inches
• Bushing Type: Taper-Lock
• Bore Diameter [Min]: 1/2 inches
• Input Bore Range: 1/2 to 1 1/8 inches
• Bore Diameter [Max]: 1 1/8 inches
• RPM [Max]: 4,500 rpm
• Style: Bushed From Hub Side
• Coupling Size: 50
• Weight: 1.95 lb
• EAN or UPC: 782475008964
