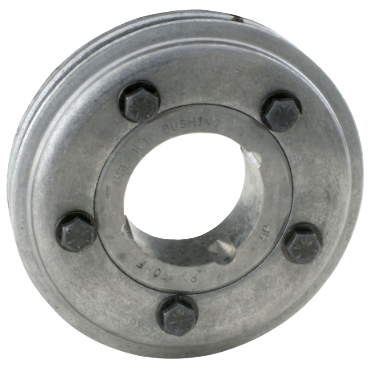

Dodge PX40HFLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX40HFLG is a Para-Flex Taper-Lock Flange designed for reliable performance in various coupling applications. This product features reversible flanges suitable for sizes PX50 to PX120 and uses standard taper lock bushings for easy installation and removal. Its compact design enhances usability, making it ideal for tight spaces.

• Reversible flanges for versatility
• Standard taper lock bushings simplify installation
• Compact design for space-saving installation

Product Highlights

Maintenance-friendly design with UL listed compliance ensures safe operation.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943445

Technical Specifications

• Torque Rating: 900.0 in lb
• Length Through Bore: 0.880 in
• Coupling Size: 40
• Outside Diameter: 5 1/4 in
• Bushing Type: Taper-Lock
• Style: Bushed From Hub Side
• Bore Diameter [Max]: 1 in
• Bore Diameter [Min]: 1/2 in
• Input Bore Range: 1/2 to 1
• RPM [Max]: 4,500 rpm
• Bushing Series: 1008
• Torque Rating [Max]: 429.0 in lb
• Weight: 2.5 LB
• EAN or UPC: 782475813209
