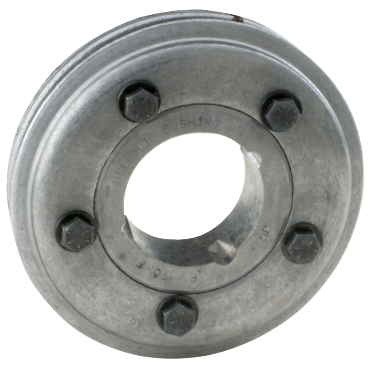

Dodge PX40FFLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX40FFLG is a Para-Flex Taper-Lock Flange designed for effective coupling applications. This product is built for a variety of industrial uses, providing reliable connections in machinery.

• Reversible flanges available for sizes PX50 to PX120.
• Standard taper lock bushings facilitate easy installation and removal.
• Compact design optimizes space usage in machinery setups.

Product Highlights

This flange features a robust design that is compatible with common Taper-Lock bushings, promoting hassle-free maintenance and adjustments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943444

Technical Specifications

• Torque Rating [Max]: 429 in lb
• Coupling Size: PX40
• RPM [Max]: 4500 rpm
• Bore Diameter [Max]: 1 in
• Input Bore Range: 1/2 to 1
• Length Through Bore: 0.88 in
• Style: Bushed From Face Side
• Bushing Series: 1008
• Bore Diameter [Min]: 1/2 in
• Bushing Type: Taper-Lock
• Weight: 2.5 lb
• EAN or UPC: 782475813483
