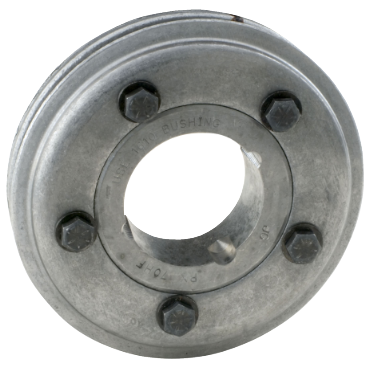

Dodge PX240FFLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX240FFLG is a Para-Flex Taper-Lock Flange designed for use in various coupling applications. This flange features a size of 240 and uses a series 5050 tapered bushing for reliable performance.

• Reversible flanges fit sizes PX50 to PX120
• Standard taper lock bushings simplify installation and removal
• Compact design for space efficiency

Product Highlights

This flange supports multiple operational needs, maximizing versatility and functionality.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100813099

Technical Specifications

• Bore Diameter [Max]: 5 in
• Bore Diameter [Min]: 2 7/16 in
• Coupling Size: 240
• Torque Rating [Max]: 151200 in lb
• RPM [Max]: 1080 rpm
• Input Bore Range: 2 7/16 to 5 in
• Style: Bushed From Face Side
• Bushing Series: 5050
