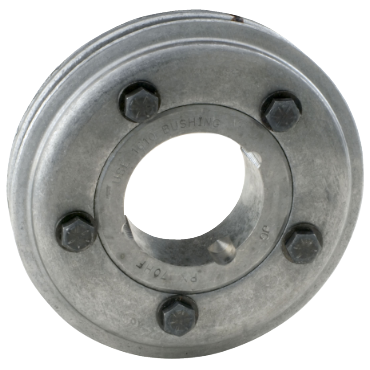

Dodge PX160FFLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX160FFLG is a Para-Flex Taper-Lock Flange designed for efficient coupling applications. This component utilizes a taper lock bushing for simple installation and removal, making it a practical choice for various industrial settings.

• Standard taper lock bushings simplify the installation process.
• Reversible flanges suitable for sizes PX50 to PX120.
• Robust design for improved operational reliability.

Product Highlights

This Taper-Lock Flange integrates a compact design and maintains UL certification to ensure safety in operational environments.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100813090

Technical Specifications

• Bore Dia. [Min]: 1 7/16 in
• Bore Dia. [Max]: 4 7/16 in
• Coupling Size: PX160
• Style: Bushed From Face Side
• Length Through Bore: 4 in
• Outside Dia.: 16.63 in
• Bushing Type: Taper-Lock
• Input Bore Range: 1 7/16 to 4 7/16
• Torque Rating [Max]: 37800 in lb
• RPM [Max]: 1560 rpm
• Bushing Series: 4040
• Weight: 116.0 LB
• EAN or UPC: 782475009824
