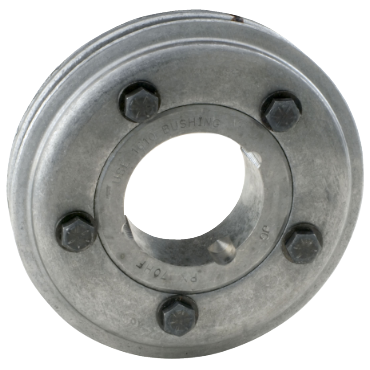

Dodge PX140HFLG PX140H FLG | Para-Flex Taper-Lock Flange

Product Description

The Dodge PX140HFLG is a Para-Flex Taper-Lock Flange designed for reliable coupling applications. It features a bushing from the hub side, making it suitable for various industrial setups.

• Reversible flanges for enhanced versatility
• Standard taper lock bushings simplify installation
• Compact design for space-saving applications

Product Highlights

This flange is ideal for use in systems that require efficient torque transfer and easy maintenance.

Product Information

Standard Information

• Brand: Dodge
• Availability: Ready to ship, typically ships within twenty-four hours

Technical Specifications

• Bushing Type: Taper-Lock
• Input Bore Range: 1 3/16 to 3 15/16
• Bushing Series: 3535
• RPM [Max]: 1,840 rpm
• Coupling Size: 140
• Torque Rating: 27,950.0 in lb
• Outside Diameter: 14.1300 in
• Style: Bushed From Hub Side
• Length Through Bore: 3 1/2 in
• Bore Diameter [Max]: 3 15/16 in
• Bore Diameter [Min]: 1 3/16 in
• Weight: 56.5 lb
• EAN or UPC: 782475009756
• NSN Number: 3040-01-104-7013
