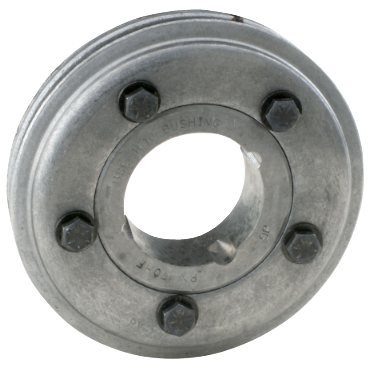

Dodge PX120FLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX120FLG is a Para-Flex Taper-Lock Flange designed for reliable performance in a range of applications. This flange is reversible and suitable for sizes PX50 to PX120, making it versatile for different setups.

• Features a standard taper lock bushing for ease of installation.
• Compact design enhances space efficiency.
• Engineered to meet UL compliance for safety.

Product Highlights

The PX120FLG is built with a robust construction that ensures longevity and durability in high-torque applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100813081

Technical Specifications

• Bushing Series: 3020
• Input Bore Range: 7/8 to 3 inches
• Outside Diameter: 12.3800 inches
• Length Through Bore: 2 inches
• Bore Diameter [Min]: 7/8 inches
• Torque Rating [Max]: 12,605.0 inch-lbs
• Coupling Size: 120
• RPM [Max]: 2,100 rpm
• Bore Diameter [Max]: 3 1/4 inches
• Bushing Type: Taper-Lock
• Style: Bushed From Hub Side
• Weight: 29.05 lbs
• EAN/UPC: 782475009039
• NSN Number: 3040-01-104-7016
