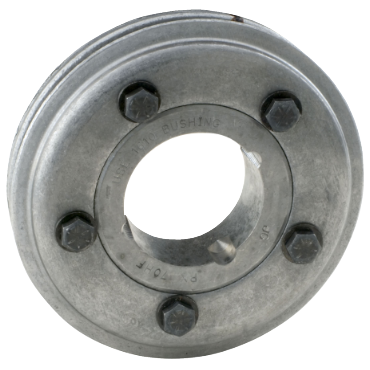

Dodge PX110FLG Para-Flex Taper-Lock Flange 110

Product Description

The Dodge PX110FLG is a Para-Flex Taper-Lock Flange designed for reliable performance in coupling applications. This flange features reversible flanges for sizes PX50 to PX120, ensuring versatility in usage. With standard taper lock bushings, installation and removal are straightforward, making it a preferred choice among professionals.

• Reversible flanges for flexibility
• Standard taper lock bushings for easy handling
• Compact and efficient design

Product Highlights

This product is UL listed, meeting compliance standards for safety and reliability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: PX110FLG

Technical Specifications

• Style: Bushed From Hub Side
• Torque Rating [Max]: 7,750.0 in lb
• Input Bore Range: 1/2 to 2 1/2 inches
• Coupling Size: 110
• Length Through Bore: 1 3/4 inches
• Bore Diameter [Min]: 1/2 inch
• Bore Diameter [Max]: 2 1/16 inches
• Bushing Series: 2517
• Bushing Type: Taper-Lock
• RPM [Max]: 2,300 rpm
• Outside Diameter: 11 inches
• Weight: 21.33 LB
• EAN or UPC: 782475009022
