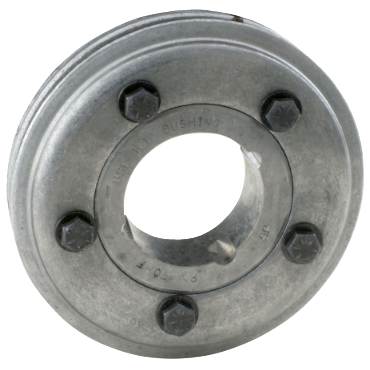

Dodge PX100FLG Para-Flex Taper-Lock Flange 100

Product Description

The Dodge PX100FLG is a Para-Flex Taper-Lock Flange designed for tire coupling applications. This product features reversible flanges suitable for various sizes. The standard taper lock bushings allow for straightforward installation and removal.

• Reversible flanges for sizes PX50 to PX120
• Standard taper lock bushings
• Compact design

Product Highlights

The flanges are built to support multiple sizes while ensuring ease of use during installation and operation.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100813077

Technical Specifications

• RPM [Max]: 2,600 rpm
• Bore Dia. [Min]: 1/2 in
• Bore Dia. [Max]: 2 11/16 in
• Input Bore Range: 1/2 to 2 1/2
• Coupling Size: 100
• Style: Bushed From Hub Side
• Length Through Bore: 1 3/4 in
• Outside Dia.: 10 in
• Bushing Type: Taper-Lock
• Torque Rating [Max]: 5,402.0 in lb
• Weight: 15.1 LB
• EAN or UPC: 782475009015
• NSN Number: 4130-00-780-4573
