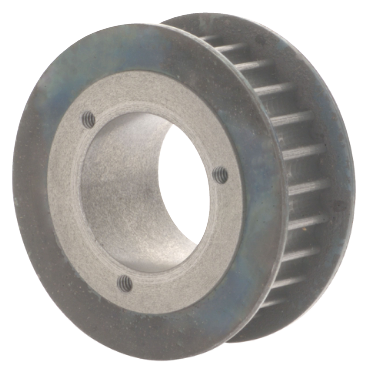

Dodge P808M30SK High Torque Drive Sprocket

Product Description

The Dodge P808M30SK is a high torque drive sprocket designed for efficient power transmission in various applications. This sprocket features an eight millimeter belt pitch and is suitable for a range of machinery including agitators, mixers, conveyors, and more.

• Comes with a bore range of one-half inch to two and five-eighths inches.
• 80 teeth with a total outside diameter of seven point nine six six inches.
• Compact design with a positive drive to prevent slippage.

Product Highlights

This sprocket ensures quiet operation and requires no lubrication, making it a low maintenance solution for power transmission needs.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946277

Technical Specifications

• Type: C2
• Pitch Diameter: 8.02 inches
• Bore Type: Taper-Lock and QD Bushed
• No. of Teeth: 80
• Belt Pitch: 8 mm
• Belt Width: 30 mm
• Outside Diameter: 7.966 inches
• Bore Range [Max]: 2.625 inches
• Bore Range [Min]: 0.5 inches
• Weight: 11.2 LB
• EAN or UPC: 782475265503
