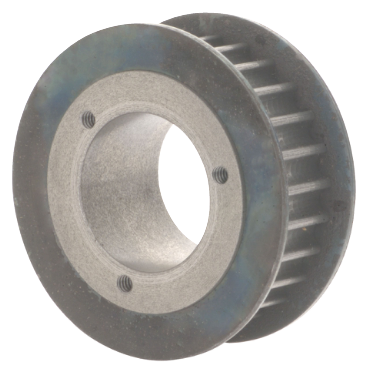

Dodge P6014M40E High Torque Drive Sprocket

Product Description

The Dodge P6014M40E is a high torque drive sprocket suitable for various machinery applications. This sprocket features a belt pitch of fourteen millimeters and has sixty teeth. The outside diameter measures ten point four one seven inches. The sprocket is designed to work with an E bushing and supports a bore range from seven eighths of an inch to three and a half inches.

• Applications include agitators, mixers, and conveyors.
• Positive drive with no slip and requires no lubrication.
• Durable and resistant to corrosion and abrasion.

Product Highlights

This product operates quietly and is compact, making it ideal for environments where space is limited.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P6014M40E

Technical Specifications

• Type: D1F
• Bushing Type: QD
• Outside Diameter: 10.417 inches
• No. of Teeth: 60
• Bore Range (Max): 3.5 inches
• Bore Range (Min): 0.875 inches
• Bushing Series: E
• Belt Pitch: 14 mm
• Belt Width: 40 mm
• Weight: 33.54 lbs
• EAN or UPC: 782475264551
