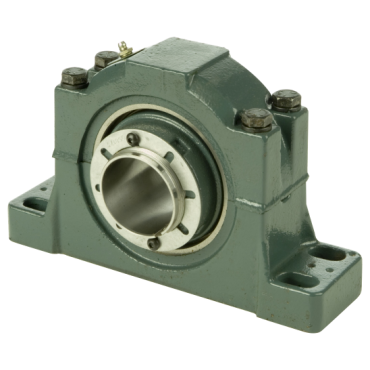

Dodge P4B528-ISAF-415LE Pillow Block Roller Bearing Unit - 4-15/16 in Bore Dia. - 00250

Product Description

The Dodge Pillow Block Roller Bearing Unit with MPN P4B528-ISAF-415LE is designed for reliable performance. This bearing unit features a four-and-fifteen-sixteenths inch bore diameter and is made of cast iron material, ensuring durability in various industrial applications. The expansion bearing type allows for greater flexibility when installed.

• Spherical roller bearing design for enhanced load capacity
• Easy installation with adapter mounted locking device
• Grease lubrication system compatible with MobilGrease XHP222

Product Highlights

Optimized for ease of use and maintenance, this bearing unit is suitable for numerous industrial machinery applications.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 4-15/16 in
• Bore Length: 5.98 in
• Weight: 250 lbs
• Height: 16 in
• Length: 21 in
• Width: 9 in
• Insert Material: Steel
• Housing Material: Cast Iron
• Sealing Type: Labyrinth
• Lubrication: Grease
• Sensor Ready: Yes
• Base To Bore Centerline: 6.0000 in
• Take Up Frame Size: HD-500
• Locking Device: Adapter Mounted
• Housing Construction: Split
• Expansion Type: Expansion Bearing (Floating)
