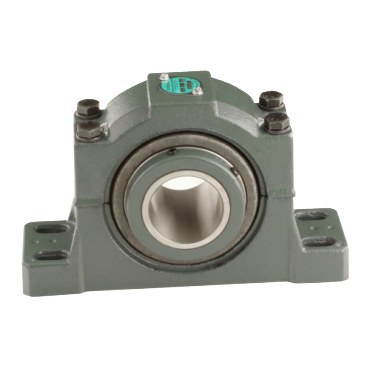

Dodge P4B517-TAF-300R Pillow Block Roller Bearing Unit - 3 in Bore Dia. - Non-Expansion Bearing

Product Description

The Dodge P4B517-TAF-300R Pillow Block Roller Bearing Unit is designed for reliable performance in demanding applications. This unit features a three-inch bore diameter and is made from durable cast iron material. As a fixed non-expansion bearing, it provides consistent support and stability in various operational environments.

• Durable cast iron housing
• Non-expansion fixed installation
• Maximum speed of 2060 RPM

Product Highlights

This bearing unit is ideal for heavy-duty applications. It ensures efficient operation with its set screw locking device and triple-lip contact sealing type.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: P4B517-TAF-300R
• Bore Diameter: 3 inches
• Length: 14 inches
• Width: 10 inches
• Height: 5 inches
• Weight: 43 lbs
• Housing Material: Cast Iron
• Grease Type: MobilGrease XHP222
• Insert Material: Steel
• Type of Bearing: Tapered Roller
• Radial Dynamic Load Capacity: 11120 lbf
• Radial Static Load Capacity: 61200 lbf
• Sealing Type: Triple-Lip Contact
• Lubrication: Grease
• Maximum Speed: 2060 RPM
• Locking Device: Set Screw
• Take Up Frame Size: HD-250
• Base to Bore Centerline: 3.5 inches
• Housing Type: Four-Bolt Pillow Block
• Expansion Type: Non-Expansion Bearing (Fixed)
