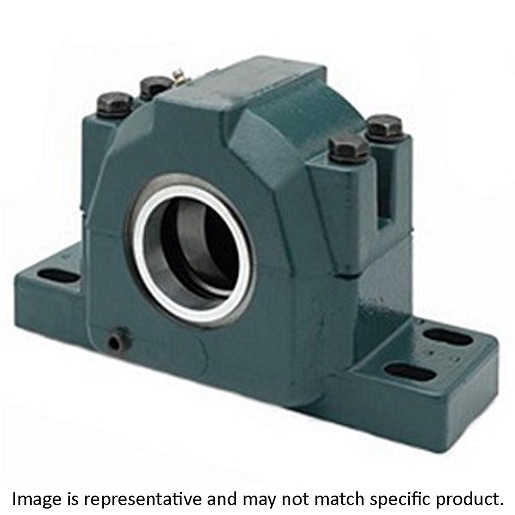

Dodge P4B218USAF090MTT Cast Iron Housing Spherical Roller Bearing 4 Bolts Pillow Block

Product Description

The Dodge P4B218USAF090MTT is a cast iron housing spherical roller bearing designed for reliable performance. This bearing features four bolts for secure mounting and a split housing construction, which simplifies installation and maintenance. It is suitable for various heavy-duty applications, particularly in industrial machinery and equipment.

• Four bolt attachment for secure installation
• Cast iron housing for durability
• Compatible with direct mount shafts

Product Highlights

Built for robust applications, this bearing supports high loads and offers easy lubrication options.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100942158

Technical Specifications

• Housing Material: Cast Iron
• Bore Length: 6.27 in
• Shaft Attachment: Direct Mount
• Bearing Type: Spherical Roller Bearing
• Bolt Diameter: 0.625 in
• Bolt Width: 2.13 in
• Bolt to Bolt [Min]: 10.38 in
• Bolt to Bolt [Max]: 11.63 in
• Speed [Max]: 2600 rpm
• Lubrication: Grease
• Dynamic Load Capacity: 78000 lbf
• Static Load Capacity: 85000 lbf
• Weight: 53.57 LB
• Shaft Diameter: 90 mm
• Sensor Ready: Yes
• Greasable: Yes
