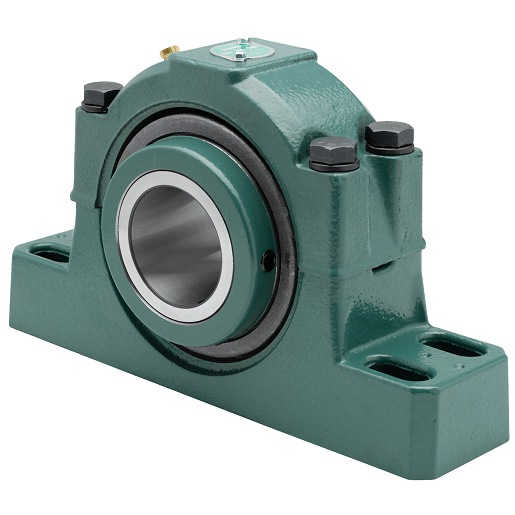

Dodge P4B-DI-315RE Cast Iron Housing Tapered Roller Bearing 4 Bolts Pillow Block

Product Description

The Dodge P4B-DI-315RE is a robust cast iron housing tapered roller bearing designed for demanding applications. This four-bolt pillow block unit features a split housing construction for easy maintenance and installation. Built with a steel insert, it ensures longevity and reliability in heavy-duty environments.

• An expansion bearing option allows for thermal expansion adjustment.
• Static load capacity is rated at 154,000 lbf.
• Compatible with HD-400 and TS-500 take-up frames.

Product Highlights

This unit is designed for simple installation and maintenance, offering a reliable solution for various industrial applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P4B-DI-315RE

Technical Specifications

• Bolt to Bolt Minimum: 13.12 inches
• Bolt to Bolt Maximum: 14.75 inches
• Housing Construction: Split
• Lubrication: Grease
• Base to Center Height: 5 inches
• Housing Material: Cast Iron
• Static Load Capacity: 154000 lbf
• Bearing Type: Tapered Roller Bearing
• Bore Length: 6.25 inches
• Insert Material: Steel
• Grease Name: MobilGrease XHP222
• Greasable: Yes
• Expansion Capability: Float
• Shaft Diameter: 3.938 inches
• Speed Maximum: 1530 rpm
• Weight: 110 LB
