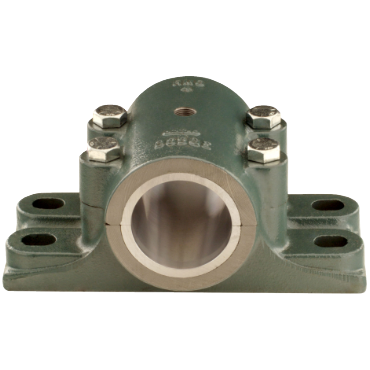

Dodge P4B-BAR-315 4 Bolt Pillow Block Plain Sleeve Bearing - 3-15/16 in Bore

Product Description

The Dodge P4BBAR315 is a four-bolt pillow block plain sleeve bearing designed for various applications. With a bore size of three and fifteen sixteenths inches, this bearing provides reliable support in numerous mechanical setups. The cast iron material enhances durability and resistance to wear, making it suitable for demanding environments.

• Bore Diameter: 3-15/16 inches
• Type: Journal Bearing
• Expansion Type: Floating

Product Highlights

This bearing is ideal for users looking for a robust and easy-to-install solution for rotating machinery.

Product Information

Standard Information

• Country of Origin: United States
• Minimum Order Quantity: 1

Technical Specifications

• Housing Material: Cast Iron
• Insert Material: Tin Babbit
• Bore Length: 8 inches
• Housing Type: Four-Bolt Pillow Block
• Lubrication: Grease
• Base to Bore Centerline: 3.5000 inches
• Bolt Center to Center Length: 11.5000 to 12.5000 inches
• Housing Construction: Split
