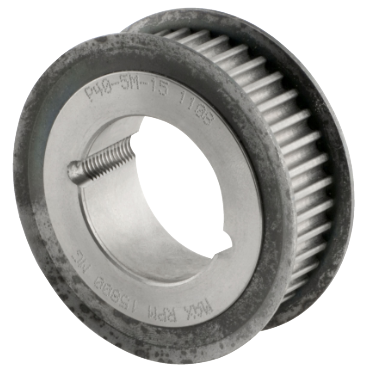

Dodge P448M302012 High Torque Drive Sprocket

Product Description

The Dodge P448M302012 is a high torque drive sprocket designed for various industrial applications. This component operates effectively in machinery such as agitators, mixers, and conveyors. It features a reliable design that ensures minimal maintenance while providing excellent performance.

• 8 mm belt pitch
• 30 mm belt width with 44 teeth
• Outside diameter of 4.357 inches

Product Highlights

Efficient for machinery in multiple sectors, suitable for high torque requirements.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P448M302012

Technical Specifications

• Bushing Series: 2012
• Pitch Diameter: 4.411 inches
• Sprocket Width: 1.5 inches
• Outside Diameter: 4.357 inches
• Bore Range [Min]: 0.5 inches
• Bushing Type: Taperlock
• Bore Type: Taper-Lock and QD Bushed
• Belt Pitch: 8 mm
• Belt Width: 30 mm
• Bore Range [Max]: 2 inches
• Finished Bore: N/A
• No. of Teeth: 44
• Type: A1F
• Weight: 3.2 LB
• EAN or UPC: 782475675517
