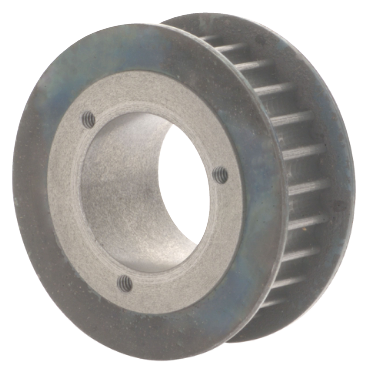

Dodge P4014M55SF High Torque Drive Sprocket

Product Description

Dodge P4014M55SF is a high torque drive sprocket designed for various machine applications. This sprocket features a fourteen millimeter belt pitch, a width of fifty-five millimeters, and forty teeth. With a six point nine zero nine inch outside diameter, it is compatible with SF bushings and accommodates a bore range from one-half to two and fifteen-sixteenth inches.

• Compatible with multiple machine types
• Requires minimal maintenance
• Corrosion and abrasion-resistant

Product Highlights

This sprocket is suitable for agitators, compressors, conveyors, and more. Its compact design supports quiet operation, ensuring reliability in demanding settings.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946321

Technical Specifications

• Bore Range [Max]: 2.9375 in
• Bore Range [Min]: 0.5 in
• Bore Type: Taper-Lock and QD Bushed
• Belt Pitch: 14 mm
• No. of Teeth: 40
• Outside Diameter: 6.909 in
• Sprocket Width: 2 3/4 in
• Bushing Series: SF
• Pitch Diameter: 7.018 in
• Weight: 15.04 LB
• EAN or UPC: 782475265275
